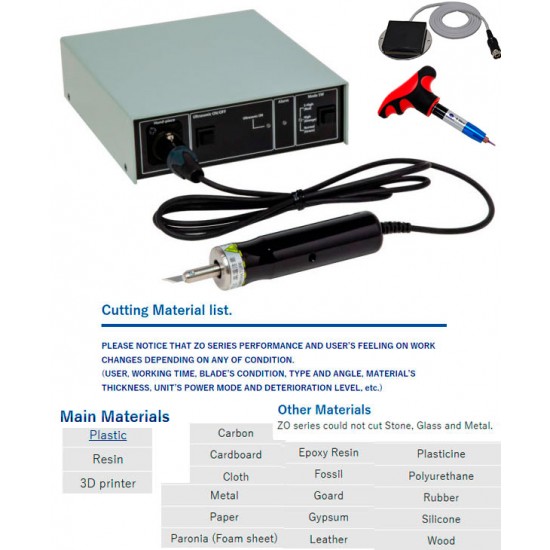

Echo Tech ZO-95 Ultrasonic Cutter (CE product)

Oscillation frequency: 40 kHz
Max. power consumption: Max. 110 VA
Power Source AC adapter: INPUT: 100-240 V AC 50/60 Hz OUTPUT: 12 V DC

External dimensions (Unit: mm)
Main unit(Generator): 185*169*55 (excluding protrusions)
Hand-piece: dia.28x150 (including blade)

Power mode switch: S-High/High/Normal
Ambient condition: Temperature: 10 to 35 °C (No condensation)x2


Weight
Main unit (Generator): Approx. 1.2 Kg
Hand-piece: Approx. 350g (including hand-piece cable)

Accessories
- BDC-200P: 40 pcs./1 case (including blades with a hole)
- Blade anchor ZH04: 1 pc.
- Blade anchor screw HB03: 1 pc.
- Hexagon wrench RR02: 1 pc.
- Torque screwdriver ZH25T: 1 pc.
- Foot switch ZH801: 1 pc.

ZO-95 attaches: Torque screwdriver ZH25T and Foot switch ZH801 (foot switch for ZO-95).

1. Based on the comparison with the cutting speed of ZO-91 in High mode when 2mm thick acrylic is cut by the force of 2kgs.
2. Ambient condition doesn't guarantee the performance of operation under the temperature.

Cutting Material list.

PLEASE NOTICE THAT ZO SERIES PERFORMANCE AND USER'S FEELING ON WORK CHANGES DEPENDING ON ANY OF CONDITION.
(USER, WORKING TIME, BLADE'S CONDITION, TYPE AND ANGLE, MATERIAL'S THICKNESS, UNIT'S POWER MODE AND DETERIORATION LEVEL, etc.)

Main Materials
Material (Alphabetic order)
Plastic [ABS, Acryl (PMMA), Nylon - Polyamide (PA), Polyamide (PA) - Nylon, Polycarbonate (PC), Polyethylene (PE), Polylactic Acid (PLA), Polypropylene (PP), Polyvinyl Chloride (PVC)]
Resin
3D printer

Other Materials
ZO series could not cut Stone, Glass and Metal.
Material (Alphabetic order)
Carbon
Cardboard
Cloth
Epoxy Resin
Fossil
Goard
Gypsum
Leather
Metal
Paper
Paronia (Foam sheet)
Plasticine
Polyurethane
Rubber
Silicone
Wood
